MIB Browser

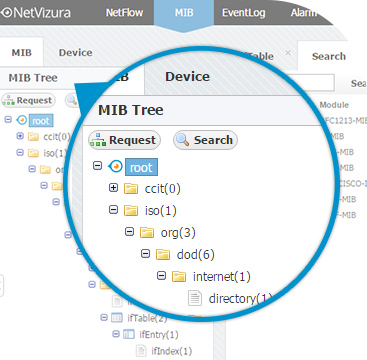

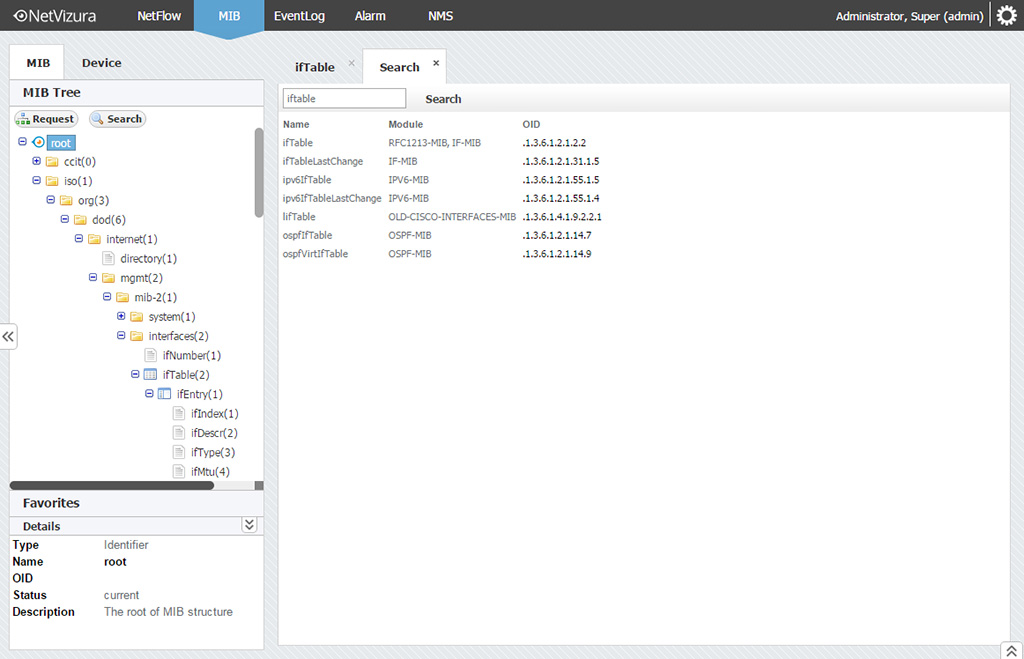

1. MIB Browsing NetVizura MIB Browser - MIB Tree walk and search

1. MIB Browsing

NetVizura MIB Browser - MIB Tree walk and search

  • MIB Browser

    MIB Browser enables you to browse, search and update your MIB database:

    • MIB Tree walk - browse the MIB tree structure
    • MIB search - search MIB database for OIDs, variables and definitions
    • SNMP operations - request SNMP operations for managed device directly from the MIB tree
  • SNMP Support

    • MIB Browser supports SNMPv1, SNMPv2c, SNMPv3
    • SNMP MIB definitions as in SMIv1 and SMIv2 formats
    • SNMP operations: GET, GETBULK, GETNEXT and SET


read more...

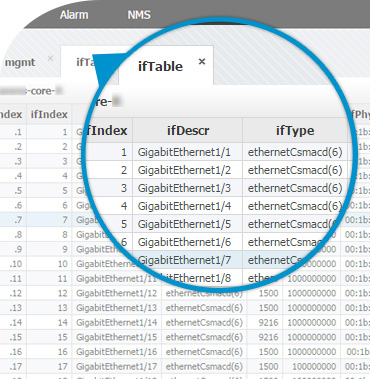

2. Easy SNMP Output and Navigation NetVizura MIB Browser - SNMP request table - ifTable

2. Easy SNMP Output and Navigation

NetVizura MIB Browser - SNMP request table - ifTable

  • Outputs of SNMP requests

    Outputs of SNMP requests are displayed in tabular which enables you to easily navigate through it.

    You can:

    • Make multiple SNMP requests - SNMP tables for each request is shown in separate tab
    • Make pivot table - reorganize SNMP table as a pivot table
    • Perform SNMP SET operation - by clicking on the highlighted variables in the table
    • Request SNMP NEXT - just one click within the table executes SNMP NEXT operation


read more...

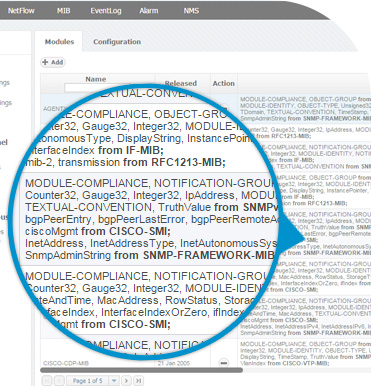

3. Easy Configuration NetVizura MIB Browser - MIBs management

3. Easy Configuration

NetVizura MIB Browser - MIBs management

  • Manage Device Database, Policies and set OIDs

    • Manage MIBs - add, remove or update MIBs
    • Manage device database - add, remove or edit device in the MIB Browser device database
    • Manage device policies - add, remove or edit device access policies (credentials)
  • Configure Device Access Policies

    You can configure SNMP GETBULK operation through setting device policies (credentials):


read more...




System Requirements

HardwareCPURAMHDD SpaceAssumptions
Minimum Single core 1.6GHz 2GB 500MB Lifetime Database history
SoftwareComes with NetVizuraNotes
java logo smallOracle Java 8, OpenJDK 8 Yes (Linux)
No (Windows)
Automatically installed with Linux packages
Required for Windows installer
tomcat small logoApache Tomcat 7, 8 or 9 Yes (Linux)
No (Windows)
Automatically installed with Linux packages
Required for Windows installer
postgre small logoPostgreSQL 12+ Yes (Linux)
No (Windows)
Automatically installed with Linux packages
Required for Windows installer
PostgreSQL 12 is recommended
tomcat small logoElasticsearch 7 Yes (Linux)
No (Windows)
Automatically installed with Linux packages
Required for Windows installer
Supported OSDistributions and VersionsNotes
debian small logoLinux Debian Debian Bookwork 12 ( 64bit)
Debian Bullseye 11 (64 bit)
Debian Buster 10 (64 bit)
Required for DEB package
ubuntu small logoLinux Ubuntu Ubuntu Noble Numbar 24.04 LTS (64bit)
Ubuntu Jammy Jellyfish 22.04 LTS (64-bit)
Ubuntu Focal Fossa 20.04 LTS (64-bit)
Required for DEB package
centos small logoLinux CentOS CentOS 8 (64 bit)
CentOS 9 (64 bit)
Required for RPM package
windows small logoWindows Windows Server 2012 (64 bit)
Windows Server 2016 (64 bit)
Windows Server 2019 (64 bit)
Windows Server 2022 (64 bit)
Required for WIN installer

Supported Browsers




Why NetVizura MIB Browser?

Easy Visualization

Results of SNMP requests are displayed in tabular form making it easy to read them.

MIBs management in one place

MIBs can be imported, updated or removed from Settings. If there are any dependencies, NetVizura will name them.

Quick OID Search and Info

Quickly search the MIB tree and access OID description.

Free License

NetVizura MIB Browser is completely free - no limitations on number of SNMP requests, devices or users. The only thing we will ask from you is to place 2 short reviews on selected websites.

Why NetVizura MIB Browser?

Results of SNMP requests are displayed in tabular form making it easy to read them.

Quickly search the MIB tree and access OID description.

MIBs can be imported, updated or removed from Settings. If there are any dependencies, NetVizura will name them.

NetVizura MIB Browser is completely free - no limitations on number of SNMP requests, devices or users. The only thing we will ask from you is to place 2 short reviews on selected websites.
